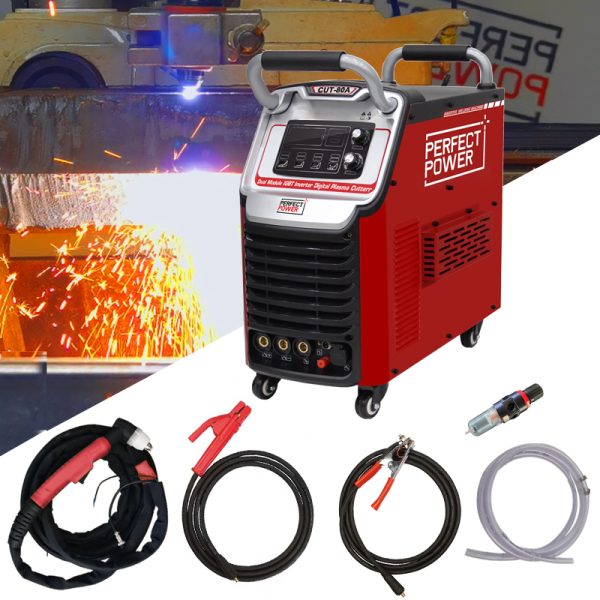

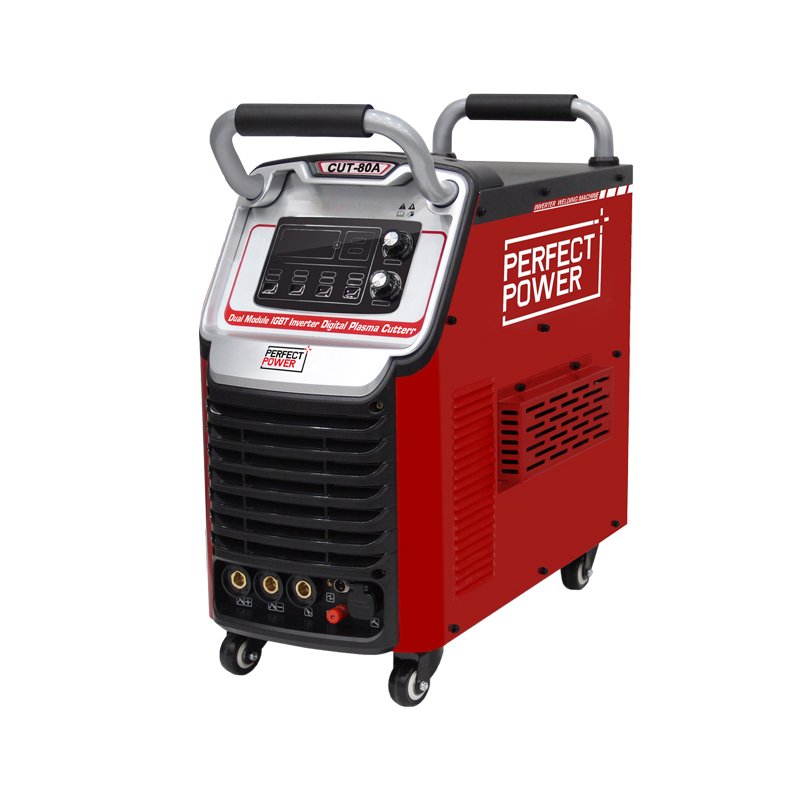

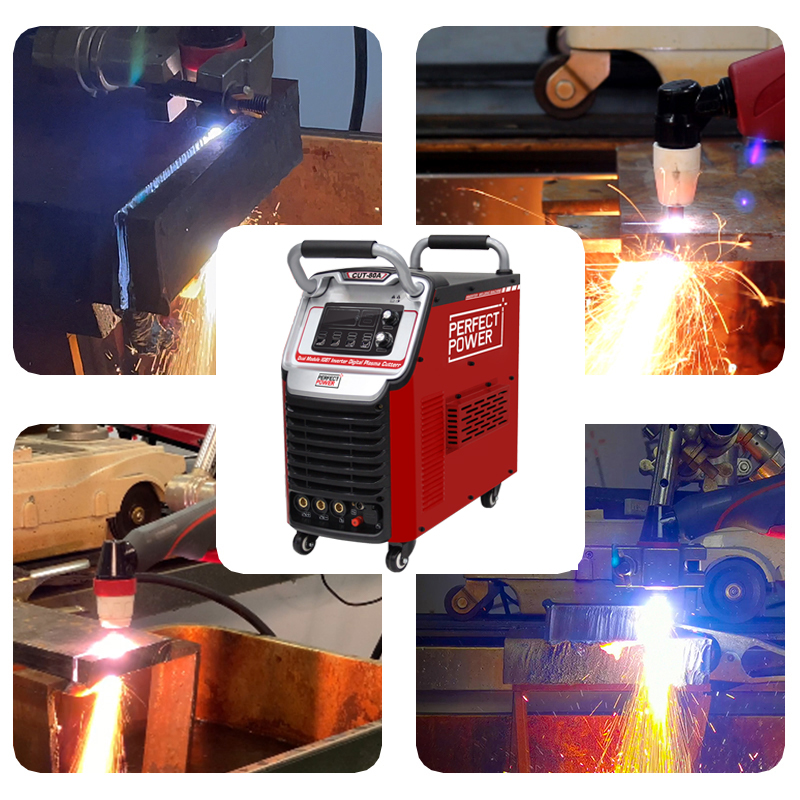

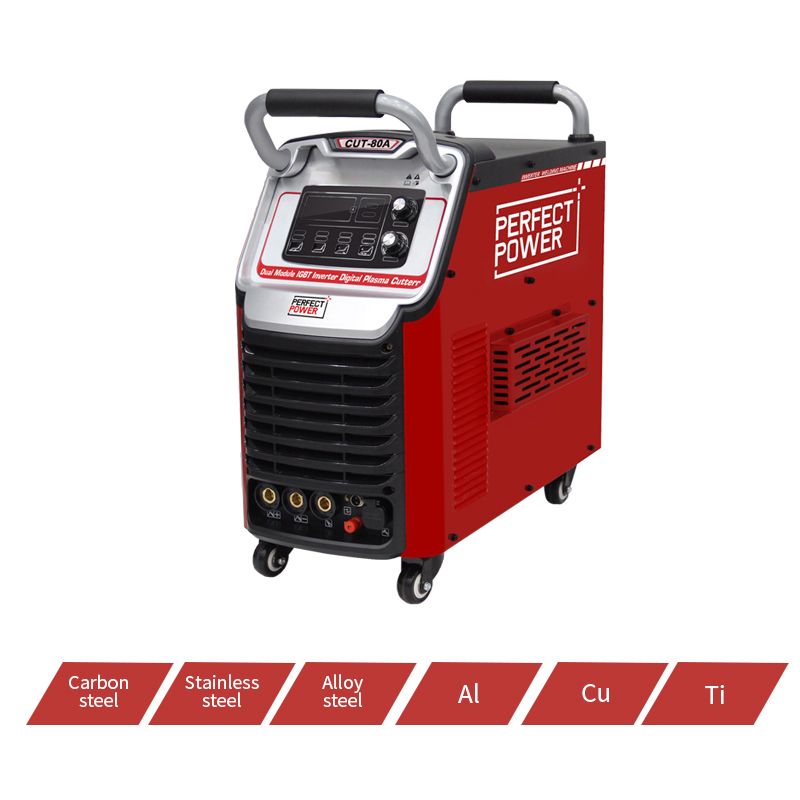

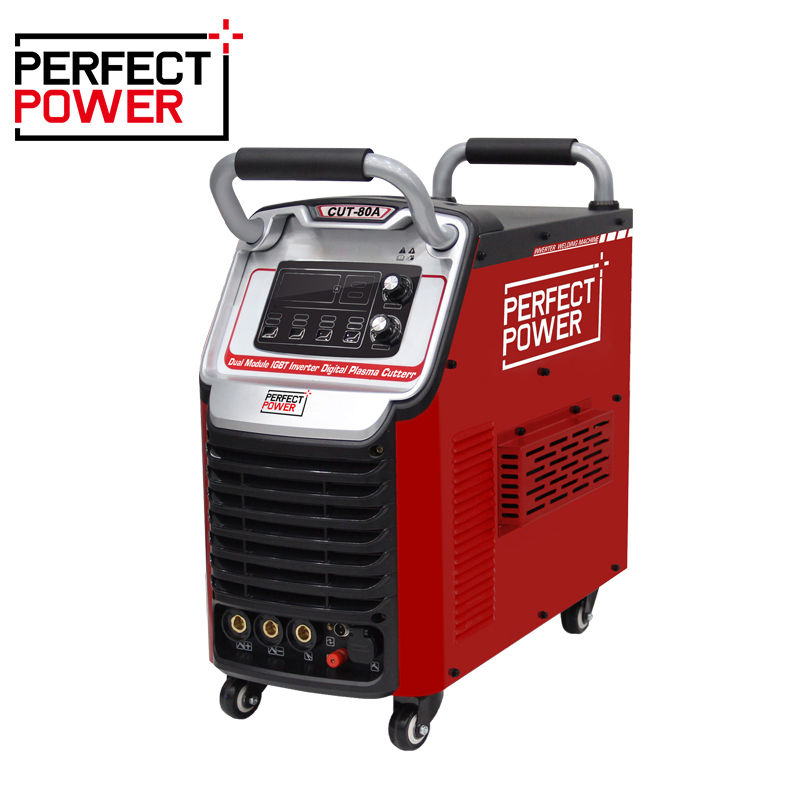

CUT-80A Plasma Cutter

The CUT-80A plasma cutter is quick switch between built-in and external air pump and designed for maximum performance, offering the highest level of cutting performance from Perfarc Power’s range. Capable of clean cutting 25mm and severing 30mm, this machine is for the professional needing maximum power from a portable machine.

This CUT-80A plasma cutter is built on a 80 AMP inverter platform, this plasma cutter can tackle your fabrication work, formwork, or auto body repairs in a cinch and is designed to work with 380 voltages when needed. Buy your 80 AMP inverter plasma cutter and start your project today at Perfect welders.

Category:

The CUT-80A plasma cutter is quick switch between built-in and external air pump and designed for maximum performance, offering the highest level of cutting performance from Perfarc Power’s range. Capable of clean cutting 25mm and severing 30mm, this machine is for the professional needing maximum power from a portable machine.

This CUT-80A plasma cutter is built on a 80 AMP inverter platform, this plasma cutter can tackle your fabrication work, formwork, or auto body repairs in a cinch and is designed to work with 380 voltages when needed. Buy your 80 AMP inverter plasma cutter and start your project today at Perfect welders.

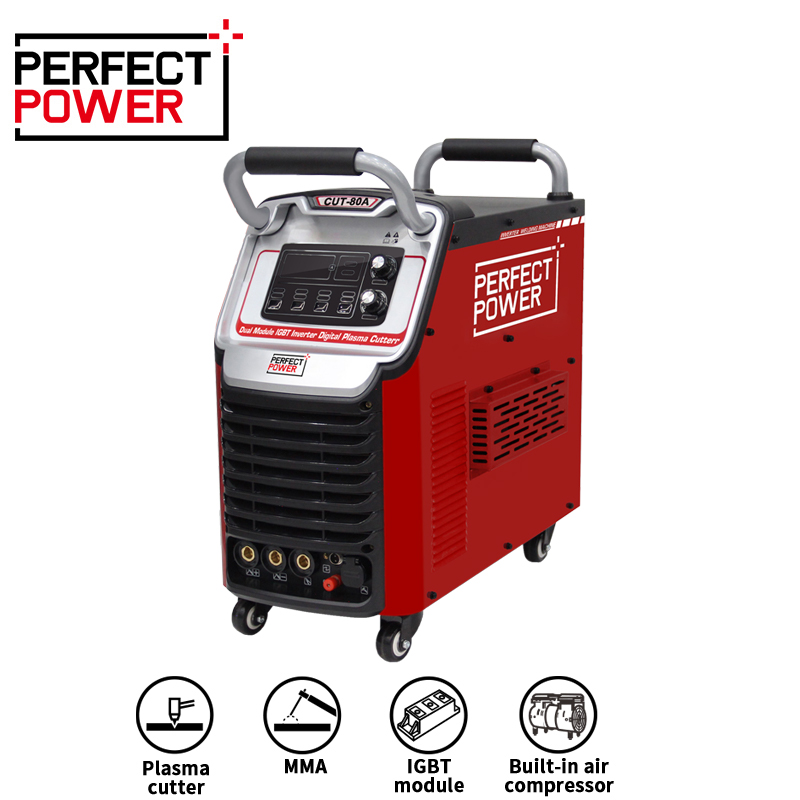

1. Multifunction Plasma cutter for industrial use: CUT&MMA.
2. Quick switch between built-in and external air pump.
3. 2-3times faster than the Oxyacetylene cutting speed with significant benefits of less deformation,low costs and high efficiency.
4. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
5. Powerful cutting capacity, narrow cutting seam and clean cutting edge.
6. Pilot arc starting increases cutting capability and cutting speed, improving service life of torch kit.
7. Operation safety protection against over-voltage, low-voltage, over-current and over-heated. 8. Heavy duty cycle for industrial use.

Modelo

CUT-80A

Tensión nominal de entrada

3pH 380V ±15%

Frecuencia(Hz)

50/60

Potencia nominal de entrada(KVA)

14

Corriente nominal de entrada(A)

21.5

CORRIENTE NOMINAL DE SALIDA(A)/TENSIÓN(V)

80/112

Corriente de corte (A)

80

Tensión de circuito abierto (V)

285

Ciclo de trabajo (%)

60%

Capacidad de corte (mm)

30

Clase de protección

IP21S

Clase de aislamiento

F

Dimensiones de envío (LxAxA) (mm)

710*385*680

Peso (KG)

55/58
